Live Streaming Encoder

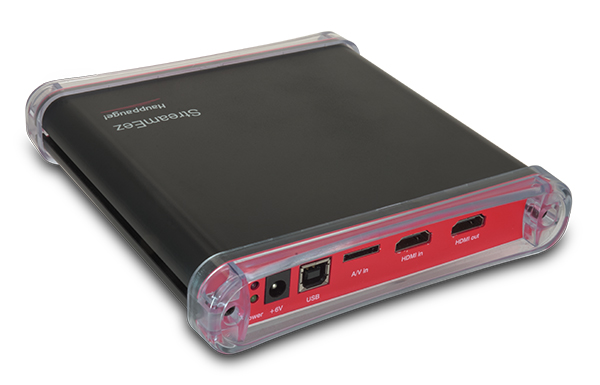

StreamEez-Pro Live Streaming Encoder

  • High definition Internet video streaming system
  • Stream with Amazon Web Services using the Wowza server, plus Ustream, YouTube, Twitch, the Meridix Sports Network and the Worship Channel
  • Works with Wowza © Streaming Engine
  • Works with nanoStream Server and the nanoStream cloud service
  • Local record while streaming
  • Includes logo inserter: add your logo to your live streams!

model 1528


StreamEez-Pro Specifications

  • Preset profiles for Wowza on Amazon Web Services, RTP streaming, nanoStream, Ustream, YouTube, Twitch and Meridix Sports
  • Built-in logo inserter
  • Built-in preconfigured Internet streaming profiles
  • Record while streaming (local record)

Technical Specifications

  • Hardware encoder
    • H.264 AVCHD high definition video encoder, with input resolution to 1080p60 from HDMI
    • Streaming datarate: from 200Kbits/sec to 12 Mbits/sec
    • Streaming formats: RTMP or RTSP
    • Video down conversion from 1080p to 720p or 1080p to 360p
    • Logo inserter: transparent PNG up to 400x300 pixels
  • Input/output connections
    • HDMI in
    • HDMI live pass through (for use with an HDMI monitor)
    • Baseband audio input
    • Component video, S-Video and composite video in, with stereo audio
  • Size: 6 in wide x 6 in deep x 1.5 in high
  • Power: 6V at 1.6 amps
  • Weight: .75lb / .34 kg / 12 oz


System Requirements for streaming

  • Laptop or desktop PC with 2.0 GHz single or multi-core processor (or faster)
  • Microsoft® Windows® 10, 8 or 7
  • 1 GB memory recommended
  • Graphics card with 256 MB memory
  • Sound card
  • 220 MB free hard disk space
  • Optional: TV monitor with HDMI input

Package Includes

  • StreamEez-Pro video encoder, USB 2.0
  • 6V 1.6 amp power supply
  • USB cable - 9 ft.
  • Installation CD-ROM
  • Quick installation guide
  • Component AV adapter cable
  • S-Video and composite video and stereo audio adapter cable

Bundled software applications

  • StreamEez-Pro, our video streaming software pre-configured for AWS with Wowza, nanoStream (RTP), YouTube, Meridix Sports Network, Twitch and Ustream, with these features:
    • Pre-configured streaming profiles: Low, medium and high
    • Simulataneous local recording of video stream
    • Customizable encoding and streaming profiles
    • Works with other RTP and RTMP streaming services
