Watch, pause and record HDTV or analog TV on your desktop PC


A TV tuner for PCI based computers for ATSC/NTSC and QAM TV.

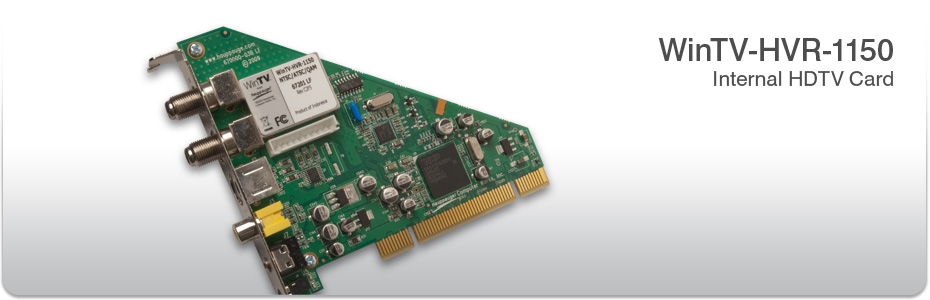

HVR-1150

WinTV-HVR-1150 model 1288
click image to enlarge

Technical Specifications

  • TV Standards:
    • NTSC Analog Cable, Over the Air TV
    • ATSC Digital Over the Air HDTV
    • Clear QAM* Digital Cable TV
  • Plugs into:
    • PCI slots

Features

  • Watch, pause and record TV on your PC, in window or full screen. Uses Hauppauge’s SoftPVR to record analog TV programs to your computer’s disk drive.
  • Receive ATSC digital TV or Clear QAM* digital cable TV, up to 1080i format
  • Receive NTSC analog cable TV with the built-in 125 channel cable-ready TV tuner
  • Schedule TV recordings
  • Compatible with Windows 7, WIndows Vista and Windows XP with service pack 2.

* Clear QAM is not available on all cable TV networks. Please check with your cable operator for the availability of clear QAM.


Watch live TV on your PC

  • Watch, pause and record analog and HDTV channels on your PC, at up to 1080i resolution.
  • Watch Analog TV and Clear QAM Digital TV by connecting to Cable TV.
  • Watch ATSC HDTV by connecting to a TV antenna.
  • Watch TV full screen or in a window.
  • Remote control included.

Record your favorite TV programs

  • Record analog or digital TV shows to your computer’s hard drive with one click.
  • Use WinTV-Scheduler as a personal video recorder to record your TV shows automatically.

Supports the following TV formats:
NTSC Analog TV, ATSC Digital TV and Clear QAM Digital Cable TV

  • Combination analog\digital TV tuner on board: a 125 channel cable-ready TV tuner plus HDTV tuner for clear QAM and ATSC TV reception.
  • Compatible with Windows 7, Windows Vista, Windows XP. Also for use with Windows Media Center (all versions).
TV Standards:

NTSC is the analog cable TV standard.

ATSC is the over-the-air digital HDTV standard for North America and typically requires an antenna for reception.

Clear QAM digital cable allows users to watch unencrypted HDTV stations from their cable TV provider without a set-top box.

Analog TV recordings typically consume 1.5GB of disk space per hour using Hauppauge’s SoftPVR for Windows XP and Media Center. High Definition TV recordings typically consume 5GB of disk space per hour.

Notes

  • For analog cable TV reception, you need an analog cable TV connection. If you have a digital cable set-top box or a satellite box, the WinTV-HVR-1150 can connect via either channel 3, Composite or S-Video inputs.
  • For ATSC over-the-air digital TV reception, a high-gain antenna is recommended. To check the ATSC TV broadcasts in your area, go to TitanTV.com and enter your postal code.
    Note: depending on the strength of your antenna, you might not be able to receive all broadcasts listed at TitanTV.
  • To use the WinTV-HVR-1150 for TV with the Windows Media Center application, a Media Center certified DVD or MPEG-2 software decoder should be standard in your Media Center PC. If you are building a Media Center PC, check Microsoft’s website for a list of Media Center certified DVD decoders. The Windows Media Center application is included with Windows XP Media Center, Windows Vista Ultimate, and Windows Vista Home Premium editions only.
    Note: the enclosed remote control is not MCE certified and does not replace the Media Center remote control.
  • To watch clear QAM channels, you should use either the Hauppauge WinTV v6 or v7 application or Windows Media Center from Windows 7.
  • ATSC TV recordings are not 100% compatible with DVD, and therefore you cannot burn them directly to a DVD.

Model numbers

model 01288: WinTV-HVR-1150 with NSTC/ATSC/QAM support, FM radio, WinTV v7 application, Hauppauge remote control and English manual

Included in the WinTV-HVR-1150 model 1288

  • WinTV-HVR-1150 PCI bus TV tuner
  • Remote control including batteries
  • Remote control receiver cable
  • FM radio antenna
  • WinTV v7 application CD-ROM
  • Quick Installation Guide
  • Full height board

System Requirements

  • Processor Requirements (minimum):
    • 2.2 GHz Intel P4 or equivalent
  • Microsoft Windows 8, Windows 7, Windows Vista or Windows XP with Service Pack 2.
    WinTV-HVR-1150 is Windows 7 certified
  • Available PCI slot
  • Graphics with 64MB memory (or greater)
  • Sound card
Note:
  • The Media Center products from Hauppauge do not include an MPEG video decoder. If you have a Media Center PC using Windows 7, Windows Vista or Windows XP Media Center Edition, it has come with a Microsoft certified MPEG decoder pre-installed. If you are building a Windows Media Center PC, please check with Microsoft for a list of certified MPEG decoders. YOU WILL NEED A MICROSOFT CERTIFIED MEDIA CENTER DECODER TO WATCH TV!
  • Windows Media Center from Windows 7 or TV Pack 2008 required for QAM reception.. Clear QAM is not available in all areas. Please contact your local cable TV operator for the availability of clear QAMcable TV.
